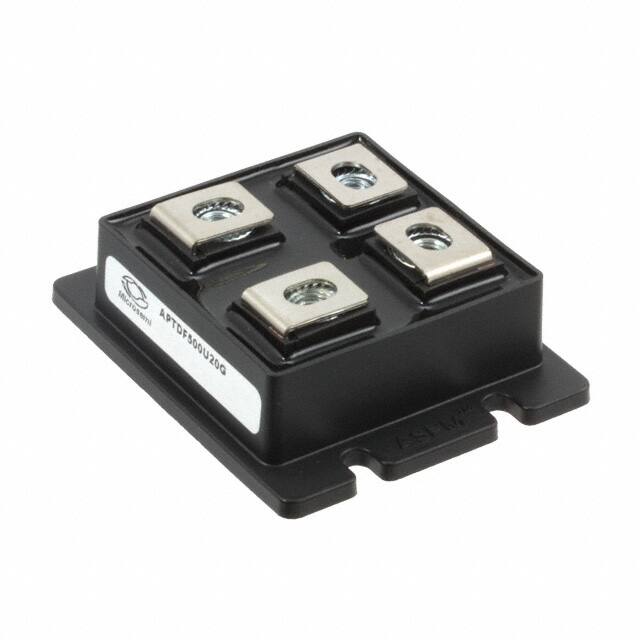

Factory Lead Time

36 Weeks

Mount

Chassis Mount, Screw

Mounting Type

Chassis Mount

Package / Case

LP4

Number of Pins

4

Diode Element Material

SILICON

Operating Temperature (Max)

150°C

Operating Temperature (Min)

-40°C

Number of Elements

1

Packaging

Bulk

Published

1999

JESD-609 Code

e1

Pbfree Code

yes

Part Status

IN PRODUCTION (Last Updated: 1 month ago)

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

4

ECCN Code

EAR99

Terminal Finish

TIN SILVER COPPER

Applications

ULTRA FAST SOFT RECOVERY

Terminal Position

UPPER

Terminal Form

UNSPECIFIED

Element Configuration

Common Cathode

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Standard

Current - Reverse Leakage @ Vr

2.5mA @ 200V

Voltage - Forward (Vf) (Max) @ If

1.1V @ 500A

Current - Output

500A

Case Connection

ISOLATED

Forward Current

1kA

Forward Voltage

1V

Max Reverse Voltage (DC)

200V

Average Rectified Current

500A

Number of Phases

1

Reverse Recovery Time

70 ns

Peak Reverse Current

2.5mA

Max Repetitive Reverse Voltage (Vrrm)

200V

Peak Non-Repetitive Surge Current

5kA

Max Forward Surge Current (Ifsm)

5kA

Reverse Voltage (DC)

200V

Height

26.5mm

Length

81mm

Width

62mm

Radiation Hardening

No

RoHS Status

RoHS Compliant

Lead Free

Lead Free
